Canal集群的部署

Canal集群的部署

安装Java环境

$ sudo yum -y install ./jdk-8u202-linux-x64.rpm

下载Canal安装包

https://github.com/alibaba/canal/releases/tag/canal-1.1.7
下载 canal.deployer-1.1.7.tar.gz canal.admin-1.1.7.tar.gz

部署

$ cd /u01/data/
$ ll
total 150268
drwxrwxr-x 6 appuser appuser        52 May 22 14:38 canal-admin
-rw-rw-r-- 1 appuser appuser  45956395 May 22 11:53 canal.admin-1.1.7.tar.gz
-rw-rw-r-- 1 appuser appuser 107915086 May 22 11:54 canal.deployer-1.1.7.tar.gz
drwxrwxr-x 7 appuser appuser        66 May 22 11:59 canal-server

$ tar -xf canal.deployer-1.1.7.tar.gz  -C ./canal-server/
$ tar -xf canal.admin-1.1.7.tar.gz -C ./canal-admin

$ cd ./canal-server/conf && cp canal.properties canal.properties.bak

配置文件

$ cat > canal.properties << EOF
#register ip
canal.register.ip = 10.20.218.88
# canal admin config
canal.admin.manager = 10.20.218.88:8089
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd = 4ACFE3202A5FF5CF467898FC58AAB1D615029441
# admin auto register
canal.admin.register.auto = true
canal.admin.register.cluster =
canal.admin.register.name = 10.20.218.88
EOF

$ cd /u01/data/canal-admin/conf && cp application.yml application.yml.bak
$ cat > application.yml << EOF
server:
  port: 8089
spring:
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8

spring.datasource:
  address: 127.0.0.1:3306
  database: canal_manager
  username: xxxx
  password: zzz
  driver-class-name: com.mysql.jdbc.Driver
  hikari:
    maximum-pool-size: 30
    minimum-idle: 1

canal:
  adminUser: admin
  adminPasswd: admin
EOF
$ sed -i '13a\  url: jdbc:mysql://${spring.datasource.address}/${spring.datasource.database}?useUnicode=true&characterEncoding=UTF-8&useSSL=false' application.yml

到mysql服务器执行/u01/data/canal-admin/conf/canal_manager.sql

# 创建Service文件
$ sudo cat /usr/lib/systemd/system/canal-server.service
[Unit]
Description=canal-server service
After=network.target

[Service]
Type=simple
User=appuser
Group=appuser
WorkingDirectory=/u01/data/canal-server/bin
PIDFile = /u01/data/canal-server/bin/canal.pid
ExecStartPre=/u01/data/canal-server/bin/stop.sh
ExecStart=/u01/data/canal-server/bin/startup.sh
Restart=always
RestartSec=3
StandardOutput=syslog
StandardError=syslog

[Install]
WantedBy=multi-user.target

$ sudo cat /usr/lib/systemd/system/canal-admin.service
[Unit]
Description=canal-admin service
After=network.target

[Service]
Type=simple
User=appuser
Group=appuser
WorkingDirectory=/u01/data/canal-admin/bin
PIDFile = /u01/data/canal-admin/bin/admin.pid
ExecStartPre=/u01/data/canal-admin/bin/stop.sh
ExecStart=/u01/data/canal-admin/bin/startup.sh
Restart=always
RestartSec=3
StandardOutput=syslog
StandardError=syslog

[Install]
WantedBy=multi-user.target

# 启动服务
$ sudo systemctl daemon-reload
$ sudo systemctl start canal-admin
$ sudo systemctl enable canal-admin
$ sudo systemctl start canal-server
$ sudo systemctl enable canal-server

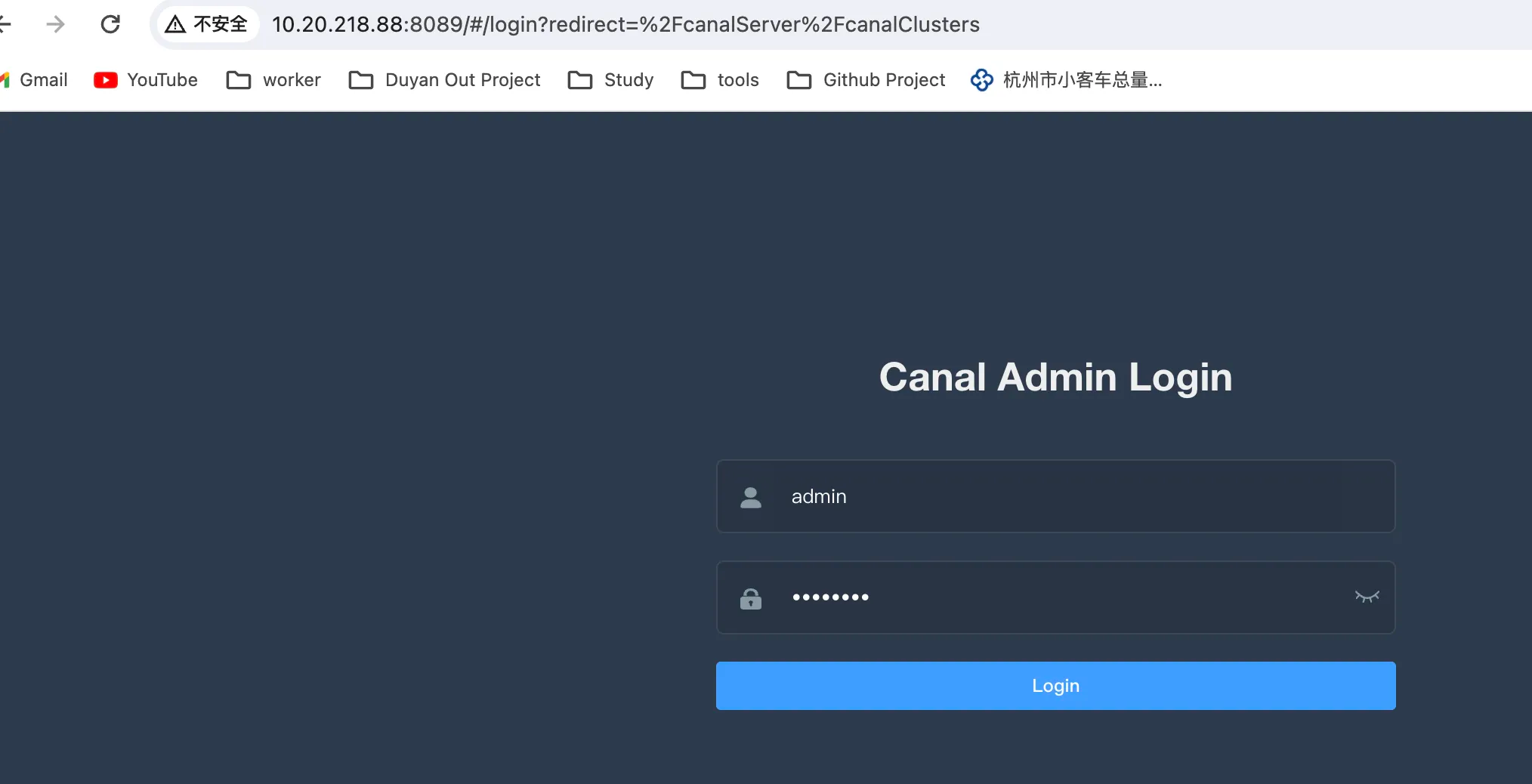

打开网页配置

Canal集群的部署

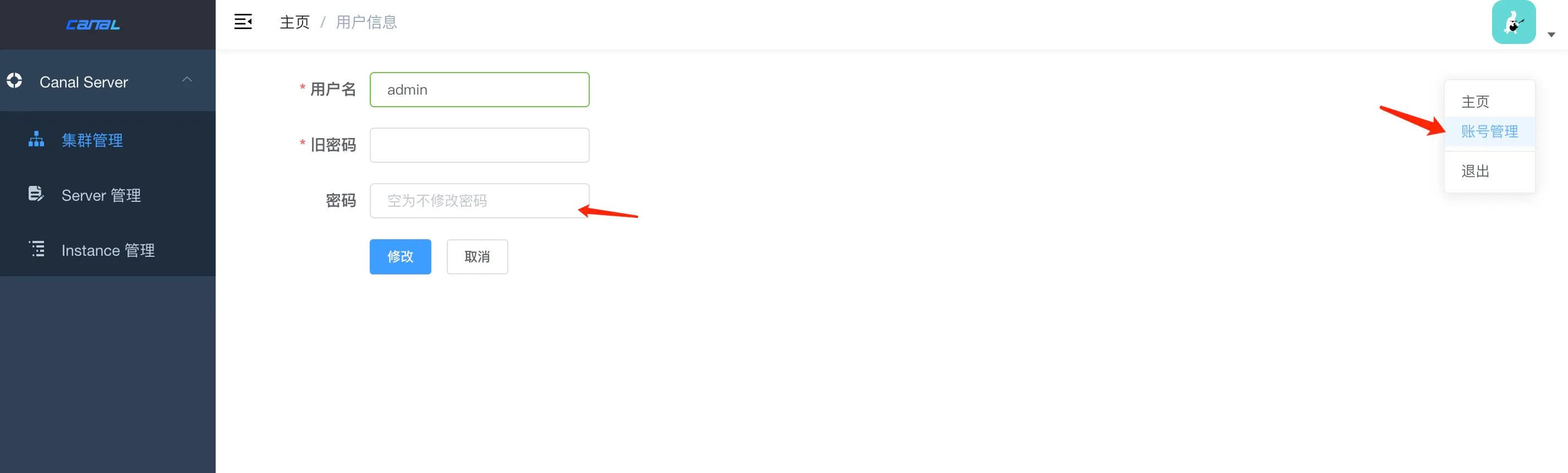

首次默认登录账户密码 admin 123456 进入之后修改密码

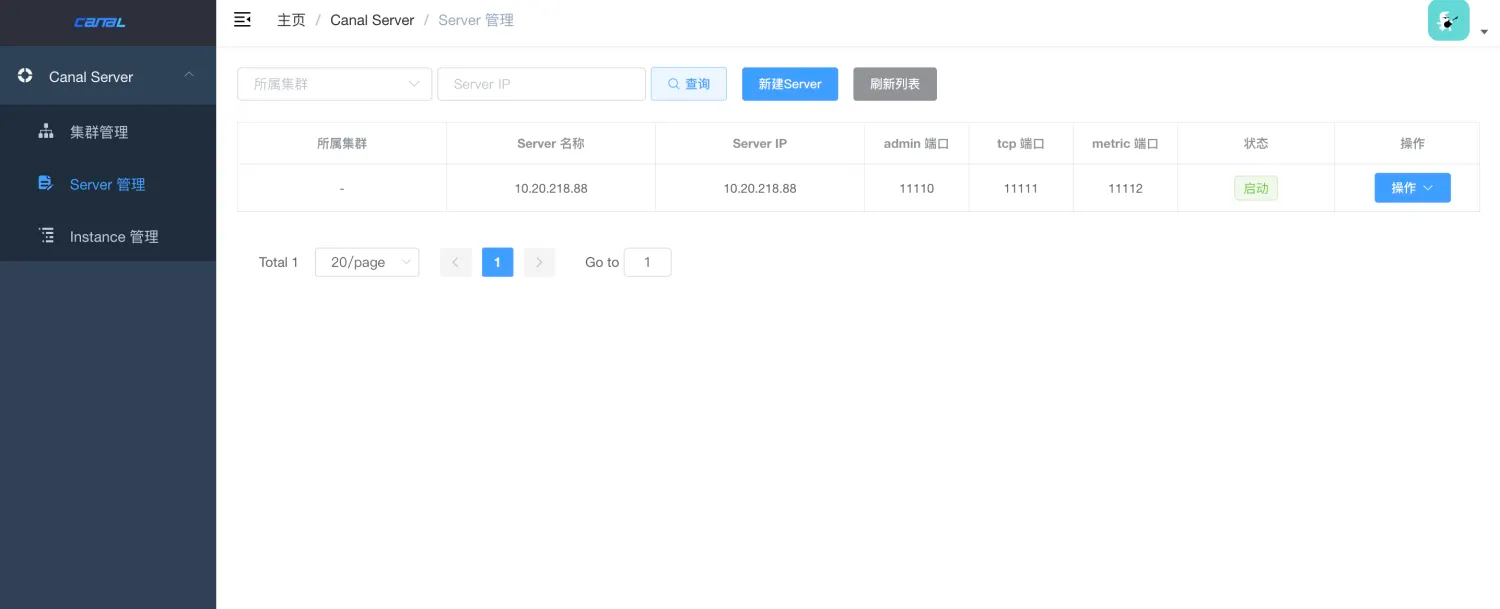

正常启动后 server会自动注册，修改配置

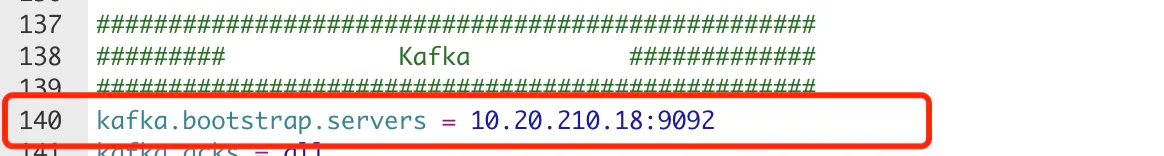

修改29行 tcp 为Kafka，140行Kafka地址

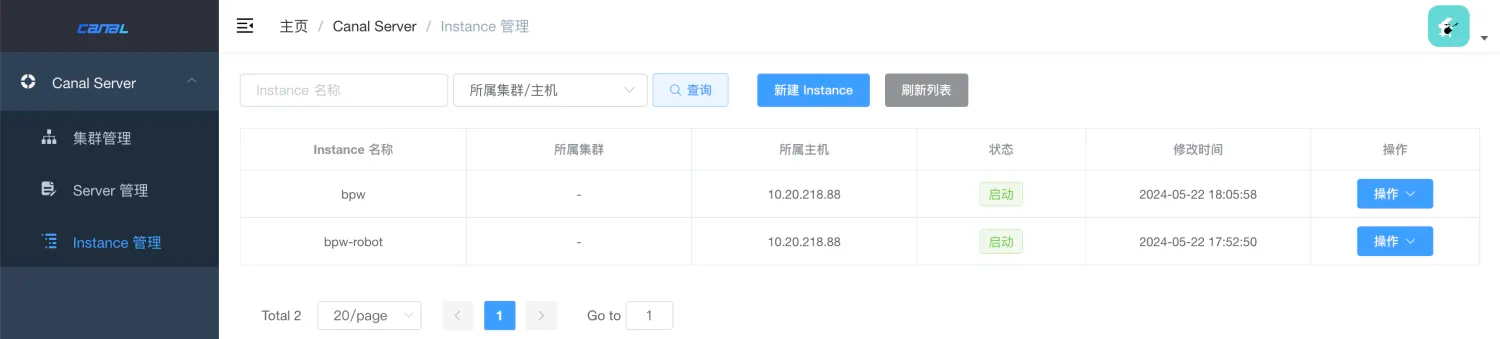

创建instance

Canal集群的部署

#################################################
## mysql serverId , v1.0.26+ will autoGen
canal.instance.mysql.slaveId=1237

# enable gtid use true/false
canal.instance.gtidon=false

# position info
canal.instance.master.address=10.20.210.19:3306

canal.instance.master.journal.name=
canal.instance.master.position=
canal.instance.master.timestamp=
canal.instance.master.gtid=

# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=

# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal

#canal.instance.standby.address =
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=

# username/password
canal.instance.dbUsername=admin
canal.instance.dbPassword=xxx
canal.instance.connectionCharset = UTF-8
canal.instance.defaultDatabaseName = anmi
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==

# table regex
canal.instance.filter.regex=xxx\\..*
# table black regex
canal.instance.filter.black.regex=
# table field filter(format:
schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format:
schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch

canal.instance.filter.field=xxx.case_info:id/org_id
# mq config
# 默认topic名称
canal.mq.topic=other
# dynamic topic route by schema or table regex
# 动态topic名称
canal.mq.dynamicTopic=
# canal.mq.partition=0
# hash partition config
# 分区数量
canal.mq.partitionsNum=1
# 分区策略
canal.mq.partitionHash=xxx\\.case_info:org_id
# mq config
#canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
#canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#################################################

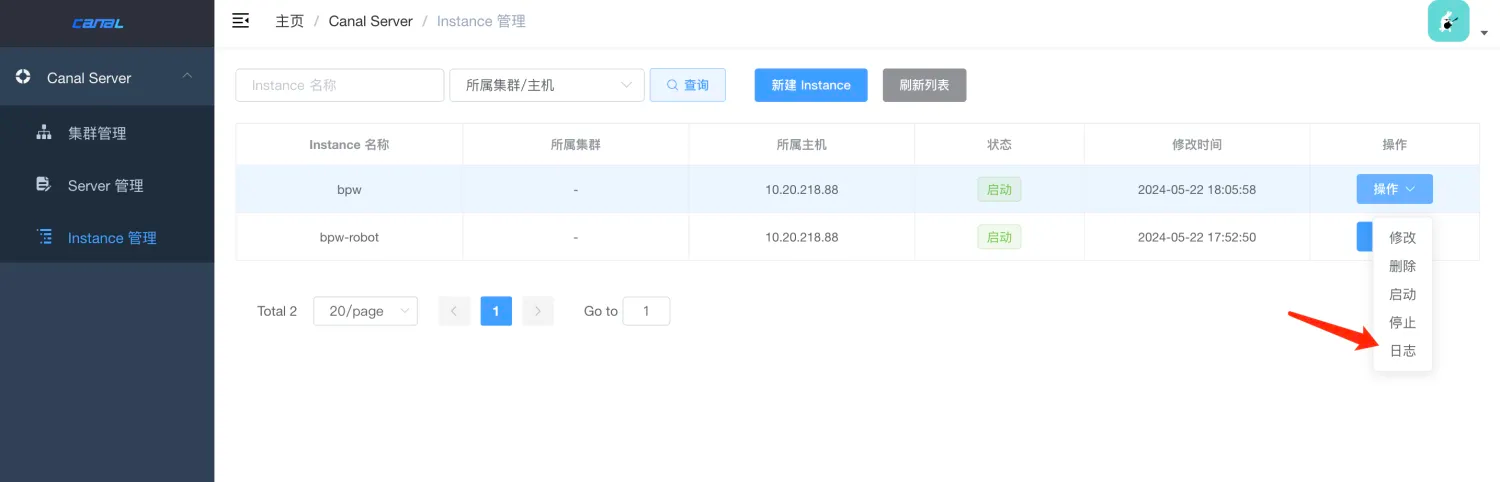

日志查询

Canal集群的部署

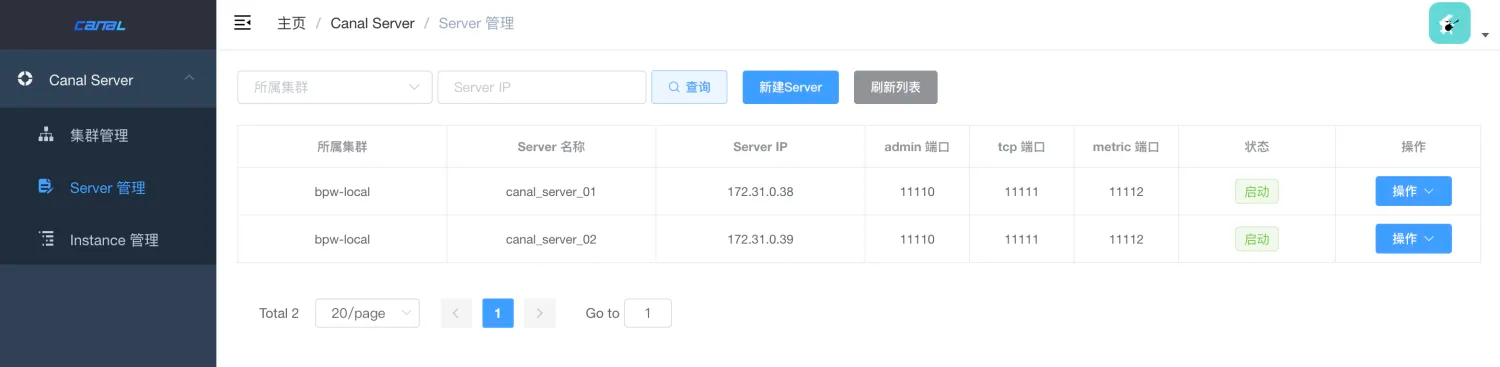

集群部署

按照上述单节点部署方式，一台服务器部署canal-admin 、两台部署canal-server，
部署完成后输入admin网址登录配置相关信息，
请注意：先部署canal-admin，添加配置后，再启动canal-server,否则server不会注册到集群中

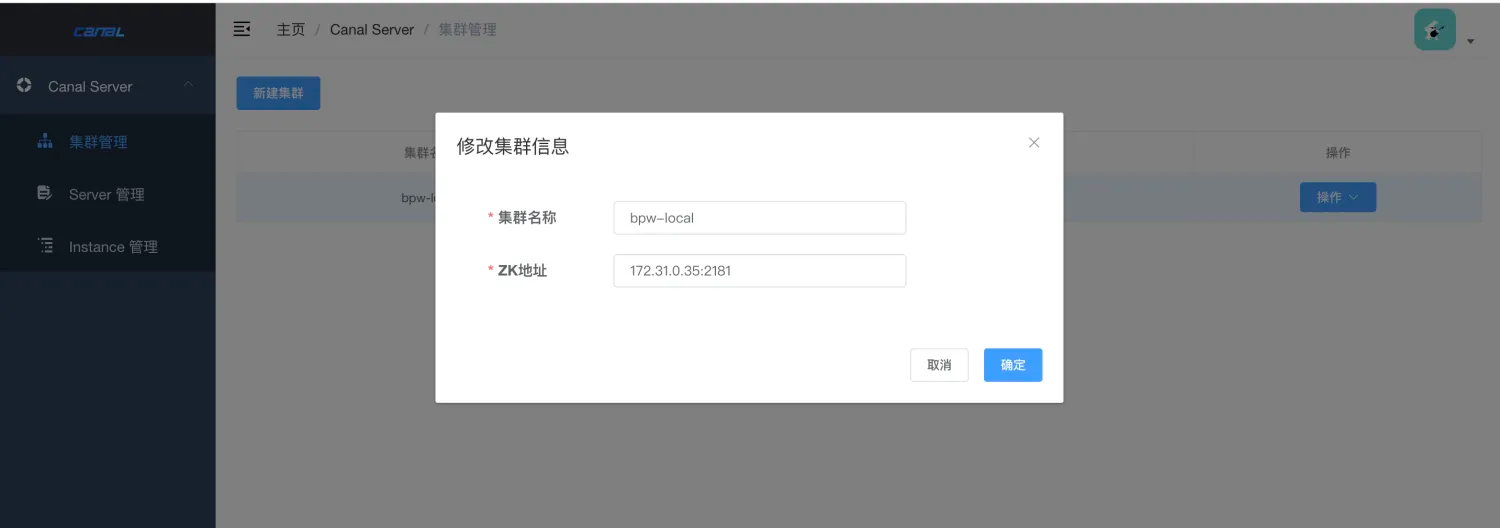

新建集群名字和ZK地址

Canal集群的部署

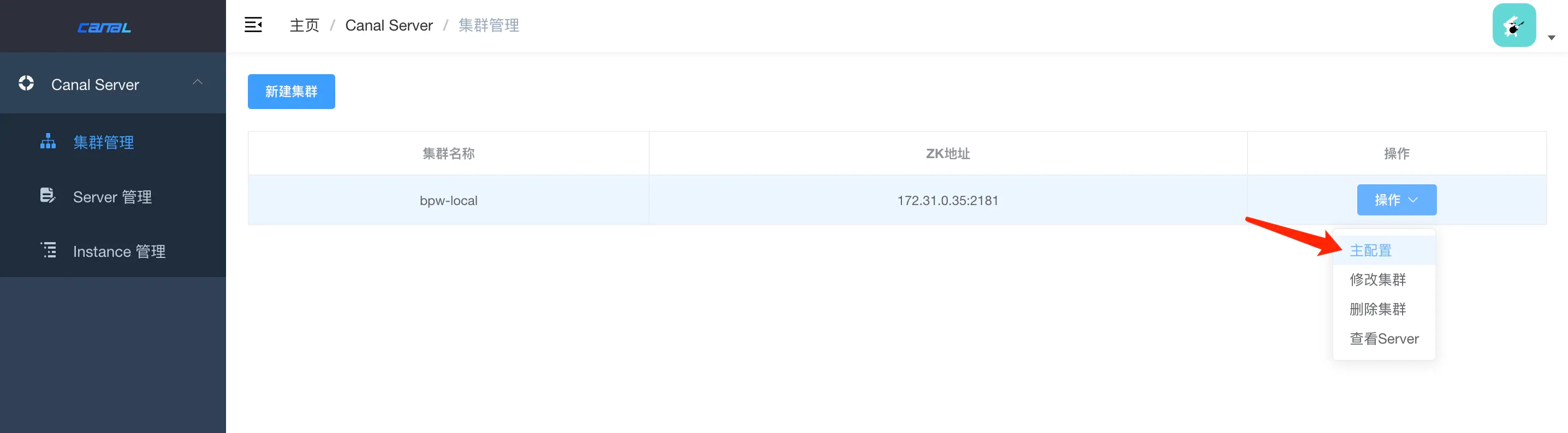

添加集群主配置

Canal集群的部署

canal.properties 修改成正确的信息
#################################################
#########         common argument        #############
#################################################
# tcp bind ip
canal.ip =
# register ip to zookeeper
canal.register.ip =
canal.port = 11111
canal.metrics.pull.port = 11112
# canal instance user/passwd
# canal.user = canal
# canal.passwd = E3619321C1A937C46A0D8BD1DAC39F93B27D4458

# canal admin config
#canal.admin.manager = 127.0.0.1:8089
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd = 4ACFE3202A5FF5CF467898FC58AAB1D615029441
# admin auto register
#canal.admin.register.auto = true
#canal.admin.register.cluster =
#canal.admin.register.name =

canal.zkServers = 172.31.0.35:2181
# flush data to zk
canal.zookeeper.flush.period = 1000
canal.withoutNetty = false
# tcp, kafka, rocketMQ, rabbitMQ, pulsarMQ
canal.serverMode = kafka
# flush meta cursor/parse position to file
canal.file.data.dir = ${canal.conf.dir}
canal.file.flush.period = 1000
## memory store RingBuffer size, should be Math.pow(2,n)
canal.instance.memory.buffer.size = 16384
## memory store RingBuffer used memory unit size , default 1kb
canal.instance.memory.buffer.memunit = 1024
## meory store gets mode used MEMSIZE or ITEMSIZE
canal.instance.memory.batch.mode = MEMSIZE
canal.instance.memory.rawEntry = true

## detecing config
canal.instance.detecting.enable = false
#canal.instance.detecting.sql = insert into retl.xdual values(1,now()) on duplicate key update x=now()
canal.instance.detecting.sql = select 1
canal.instance.detecting.interval.time = 3
canal.instance.detecting.retry.threshold = 3
canal.instance.detecting.heartbeatHaEnable = false

# support maximum transaction size, more than the size of the transaction will be cut into multiple transactions delivery
canal.instance.transaction.size =  1024
# mysql fallback connected to new master should fallback times
canal.instance.fallbackIntervalInSeconds = 60

# network config
canal.instance.network.receiveBufferSize = 16384
canal.instance.network.sendBufferSize = 16384
canal.instance.network.soTimeout = 30

# binlog filter config
canal.instance.filter.druid.ddl = true
canal.instance.filter.query.dcl = false
canal.instance.filter.query.dml = false
canal.instance.filter.query.ddl = false
canal.instance.filter.table.error = false
canal.instance.filter.rows = false
canal.instance.filter.transaction.entry = false
canal.instance.filter.dml.insert = false
canal.instance.filter.dml.update = false
canal.instance.filter.dml.delete = false

# binlog format/image check
canal.instance.binlog.format = ROW,STATEMENT,MIXED
canal.instance.binlog.image = FULL,MINIMAL,NOBLOB

# binlog ddl isolation
canal.instance.get.ddl.isolation = false

# parallel parser config
canal.instance.parser.parallel = true
## concurrent thread number, default 60% available processors, suggest not to exceed Runtime.getRuntime().availableProcessors()
#canal.instance.parser.parallelThreadSize = 16
## disruptor ringbuffer size, must be power of 2
canal.instance.parser.parallelBufferSize = 256

# table meta tsdb info
canal.instance.tsdb.enable = true
canal.instance.tsdb.dir = ${canal.file.data.dir:../conf}/${canal.instance.destination:}
canal.instance.tsdb.url = jdbc:mysql://172.31.0.35:3306/canal_manager?useUnicode=true&characterEncoding=UTF-8&useSSL=false
canal.instance.tsdb.dbUsername = xxx
canal.instance.tsdb.dbPassword = zzzz
# dump snapshot interval, default 24 hour
canal.instance.tsdb.snapshot.interval = 24
# purge snapshot expire , default 360 hour(15 days)
canal.instance.tsdb.snapshot.expire = 360

#################################################
#########         destinations        #############
#################################################
canal.destinations =
# conf root dir
canal.conf.dir = ../conf
# auto scan instance dir add/remove and start/stop instance
canal.auto.scan = true
canal.auto.scan.interval = 5
# set this value to 'true' means that when binlog pos not found, skip to latest.
# WARN: pls keep 'false' in production env, or if you know what you want.
canal.auto.reset.latest.pos.mode = false

#canal.instance.tsdb.spring.xml = classpath:spring/tsdb/h2-tsdb.xml
canal.instance.tsdb.spring.xml = classpath:spring/tsdb/mysql-tsdb.xml

canal.instance.global.mode = manager
canal.instance.global.lazy = false
canal.instance.global.manager.address = ${canal.admin.manager}
#canal.instance.global.spring.xml = classpath:spring/memory-instance.xml
#canal.instance.global.spring.xml = classpath:spring/file-instance.xml
canal.instance.global.spring.xml = classpath:spring/default-instance.xml

##################################################
#########           MQ Properties      #############
##################################################
# aliyun ak/sk , support rds/mq
canal.aliyun.accessKey =
canal.aliyun.secretKey =
canal.aliyun.uid=

canal.mq.flatMessage = true
canal.mq.canalBatchSize = 50
canal.mq.canalGetTimeout = 100
# Set this value to "cloud", if you want open message trace feature in aliyun.
canal.mq.accessChannel = local

canal.mq.database.hash = true
canal.mq.send.thread.size = 30
canal.mq.build.thread.size = 8

##################################################
#########              Kafka              #############
##################################################
kafka.bootstrap.servers = 172.31.0.35:9092
kafka.acks = all
kafka.compression.type = none
kafka.batch.size = 16384
kafka.linger.ms = 1
kafka.max.request.size = 1048576
kafka.buffer.memory = 33554432
kafka.max.in.flight.requests.per.connection = 1
kafka.retries = 0

kafka.kerberos.enable = false
kafka.kerberos.krb5.file = ../conf/kerberos/krb5.conf
kafka.kerberos.jaas.file = ../conf/kerberos/jaas.conf

# sasl demo
# kafka.sasl.jaas.config = org.apache.kafka.common.security.scram.ScramLoginModule required \\n username=\"alice\" \\npassword="alice-secret\";
# kafka.sasl.mechanism = SCRAM-SHA-512
# kafka.security.protocol = SASL_PLAINTEXT

##################################################
#########             RocketMQ         #############
##################################################
rocketmq.producer.group = test
rocketmq.enable.message.trace = false
rocketmq.customized.trace.topic =
rocketmq.namespace =
rocketmq.namesrv.addr = 127.0.0.1:9876
rocketmq.retry.times.when.send.failed = 0
rocketmq.vip.channel.enabled = false
rocketmq.tag =

##################################################
#########             RabbitMQ         #############
##################################################
rabbitmq.host =
rabbitmq.virtual.host =
rabbitmq.exchange =
rabbitmq.username =
rabbitmq.password =
rabbitmq.deliveryMode =


##################################################
#########               Pulsar         #############
##################################################
pulsarmq.serverUrl =
pulsarmq.roleToken =
pulsarmq.topicTenantPrefix =

# canal-server 配置
# cat canal.properties
# register ip
canal.register.ip = 172.31.0.38 「修改这个配置，多台机器本机IP」
# canal admin config
canal.admin.manager = 172.31.0.37:8089
canal.port = 11111
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd = 4ACFE3202A5FF5CF467898FC58AAB1D615029441
# admin auto register
canal.admin.register.auto = true
canal.admin.register.cluster = zzz-local
canal.admin.register.name = canal_server_01 「多台机器名字」

启动 Canal-server 服务，发现服务自动注册到集群中

Canal集群的部署

添加instance实例，配置参考上述单节点配置

Canal集群的部署

2024-11-12 | 运维自动化 | 热度:378°C |

安装Java环境

$ sudo yum -y install ./jdk-8u202-linux-x64.rpm

下载Canal安装包

https://github.com/alibaba/canal/releases/tag/canal-1.1.7
下载 canal.deployer-1.1.7.tar.gz canal.admin-1.1.7.tar.gz

部署

$ cd /u01/data/
$ ll
total 150268
drwxrwxr-x 6 appuser appuser        52 May 22 14:38 canal-admin
-rw-rw-r-- 1 appuser appuser  45956395 May 22 11:53 canal.admin-1.1.7.tar.gz
-rw-rw-r-- 1 appuser appuser 107915086 May 22 11:54 canal.deployer-1.1.7.tar.gz
drwxrwxr-x 7 appuser appuser        66 May 22 11:59 canal-server

$ tar -xf canal.deployer-1.1.7.tar.gz  -C ./canal-server/
$ tar -xf canal.admin-1.1.7.tar.gz -C ./canal-admin

$ cd ./canal-server/conf && cp canal.properties canal.properties.bak

配置文件

$ cat > canal.properties << EOF
#register ip
canal.register.ip = 10.20.218.88
# canal admin config
canal.admin.manager = 10.20.218.88:8089
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd = 4ACFE3202A5FF5CF467898FC58AAB1D615029441
# admin auto register
canal.admin.register.auto = true
canal.admin.register.cluster =
canal.admin.register.name = 10.20.218.88
EOF

$ cd /u01/data/canal-admin/conf && cp application.yml application.yml.bak
$ cat > application.yml << EOF
server:
  port: 8089
spring:
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8

spring.datasource:
  address: 127.0.0.1:3306
  database: canal_manager
  username: xxxx
  password: zzz
  driver-class-name: com.mysql.jdbc.Driver
  hikari:
    maximum-pool-size: 30
    minimum-idle: 1

canal:
  adminUser: admin
  adminPasswd: admin
EOF
$ sed -i '13a\  url: jdbc:mysql://${spring.datasource.address}/${spring.datasource.database}?useUnicode=true&characterEncoding=UTF-8&useSSL=false' application.yml

到mysql服务器执行/u01/data/canal-admin/conf/canal_manager.sql

# 创建Service文件
$ sudo cat /usr/lib/systemd/system/canal-server.service
[Unit]
Description=canal-server service
After=network.target

[Service]
Type=simple
User=appuser
Group=appuser
WorkingDirectory=/u01/data/canal-server/bin
PIDFile = /u01/data/canal-server/bin/canal.pid
ExecStartPre=/u01/data/canal-server/bin/stop.sh
ExecStart=/u01/data/canal-server/bin/startup.sh
Restart=always
RestartSec=3
StandardOutput=syslog
StandardError=syslog

[Install]
WantedBy=multi-user.target

$ sudo cat /usr/lib/systemd/system/canal-admin.service
[Unit]
Description=canal-admin service
After=network.target

[Service]
Type=simple
User=appuser
Group=appuser
WorkingDirectory=/u01/data/canal-admin/bin
PIDFile = /u01/data/canal-admin/bin/admin.pid
ExecStartPre=/u01/data/canal-admin/bin/stop.sh
ExecStart=/u01/data/canal-admin/bin/startup.sh
Restart=always
RestartSec=3
StandardOutput=syslog
StandardError=syslog

[Install]
WantedBy=multi-user.target

# 启动服务
$ sudo systemctl daemon-reload
$ sudo systemctl start canal-admin
$ sudo systemctl enable canal-admin
$ sudo systemctl start canal-server
$ sudo systemctl enable canal-server

打开网页配置

Canal集群的部署

首次默认登录账户密码 admin 123456 进入之后修改密码

正常启动后 server会自动注册，修改配置

修改29行 tcp 为Kafka，140行Kafka地址

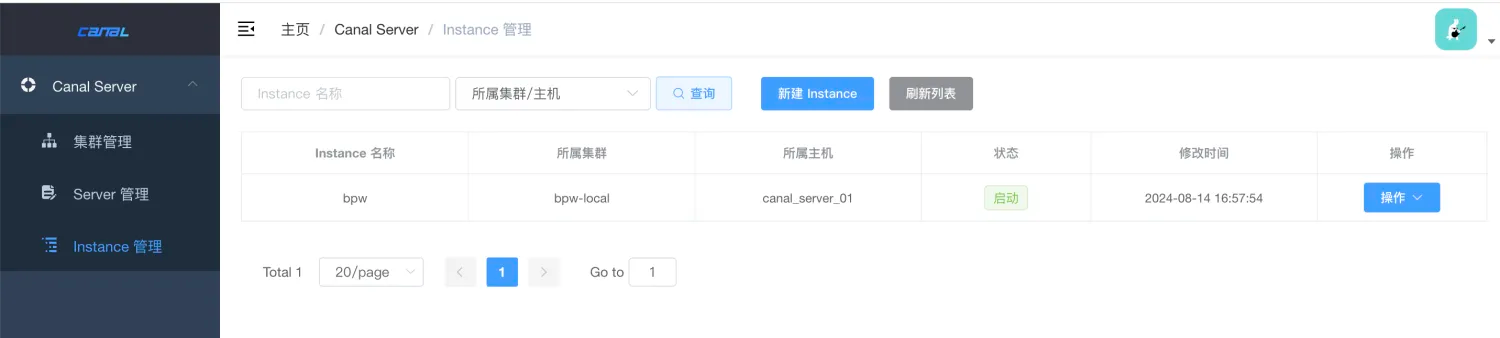

创建instance

Canal集群的部署

#################################################
## mysql serverId , v1.0.26+ will autoGen
canal.instance.mysql.slaveId=1237

# enable gtid use true/false
canal.instance.gtidon=false

# position info
canal.instance.master.address=10.20.210.19:3306

canal.instance.master.journal.name=
canal.instance.master.position=
canal.instance.master.timestamp=
canal.instance.master.gtid=

# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=

# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal

#canal.instance.standby.address =
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=

# username/password
canal.instance.dbUsername=admin
canal.instance.dbPassword=xxx
canal.instance.connectionCharset = UTF-8
canal.instance.defaultDatabaseName = anmi
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==

# table regex
canal.instance.filter.regex=xxx\\..*
# table black regex
canal.instance.filter.black.regex=
# table field filter(format:
schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format:
schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch

canal.instance.filter.field=xxx.case_info:id/org_id
# mq config
# 默认topic名称
canal.mq.topic=other
# dynamic topic route by schema or table regex
# 动态topic名称
canal.mq.dynamicTopic=
# canal.mq.partition=0
# hash partition config
# 分区数量
canal.mq.partitionsNum=1
# 分区策略
canal.mq.partitionHash=xxx\\.case_info:org_id
# mq config
#canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
#canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#################################################

日志查询

Canal集群的部署

集群部署

按照上述单节点部署方式，一台服务器部署canal-admin 、两台部署canal-server，
部署完成后输入admin网址登录配置相关信息，
请注意：先部署canal-admin，添加配置后，再启动canal-server,否则server不会注册到集群中

新建集群名字和ZK地址

Canal集群的部署

添加集群主配置

Canal集群的部署

canal.properties 修改成正确的信息
#################################################
#########         common argument        #############
#################################################
# tcp bind ip
canal.ip =
# register ip to zookeeper
canal.register.ip =
canal.port = 11111
canal.metrics.pull.port = 11112
# canal instance user/passwd
# canal.user = canal
# canal.passwd = E3619321C1A937C46A0D8BD1DAC39F93B27D4458

# canal admin config
#canal.admin.manager = 127.0.0.1:8089
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd = 4ACFE3202A5FF5CF467898FC58AAB1D615029441
# admin auto register
#canal.admin.register.auto = true
#canal.admin.register.cluster =
#canal.admin.register.name =

canal.zkServers = 172.31.0.35:2181
# flush data to zk
canal.zookeeper.flush.period = 1000
canal.withoutNetty = false
# tcp, kafka, rocketMQ, rabbitMQ, pulsarMQ
canal.serverMode = kafka
# flush meta cursor/parse position to file
canal.file.data.dir = ${canal.conf.dir}
canal.file.flush.period = 1000
## memory store RingBuffer size, should be Math.pow(2,n)
canal.instance.memory.buffer.size = 16384
## memory store RingBuffer used memory unit size , default 1kb
canal.instance.memory.buffer.memunit = 1024
## meory store gets mode used MEMSIZE or ITEMSIZE
canal.instance.memory.batch.mode = MEMSIZE
canal.instance.memory.rawEntry = true

## detecing config
canal.instance.detecting.enable = false
#canal.instance.detecting.sql = insert into retl.xdual values(1,now()) on duplicate key update x=now()
canal.instance.detecting.sql = select 1
canal.instance.detecting.interval.time = 3
canal.instance.detecting.retry.threshold = 3
canal.instance.detecting.heartbeatHaEnable = false

# support maximum transaction size, more than the size of the transaction will be cut into multiple transactions delivery
canal.instance.transaction.size =  1024
# mysql fallback connected to new master should fallback times
canal.instance.fallbackIntervalInSeconds = 60

# network config
canal.instance.network.receiveBufferSize = 16384
canal.instance.network.sendBufferSize = 16384
canal.instance.network.soTimeout = 30

# binlog filter config
canal.instance.filter.druid.ddl = true
canal.instance.filter.query.dcl = false
canal.instance.filter.query.dml = false
canal.instance.filter.query.ddl = false
canal.instance.filter.table.error = false
canal.instance.filter.rows = false
canal.instance.filter.transaction.entry = false
canal.instance.filter.dml.insert = false
canal.instance.filter.dml.update = false
canal.instance.filter.dml.delete = false

# binlog format/image check
canal.instance.binlog.format = ROW,STATEMENT,MIXED
canal.instance.binlog.image = FULL,MINIMAL,NOBLOB

# binlog ddl isolation
canal.instance.get.ddl.isolation = false

# parallel parser config
canal.instance.parser.parallel = true
## concurrent thread number, default 60% available processors, suggest not to exceed Runtime.getRuntime().availableProcessors()
#canal.instance.parser.parallelThreadSize = 16
## disruptor ringbuffer size, must be power of 2
canal.instance.parser.parallelBufferSize = 256

# table meta tsdb info
canal.instance.tsdb.enable = true
canal.instance.tsdb.dir = ${canal.file.data.dir:../conf}/${canal.instance.destination:}
canal.instance.tsdb.url = jdbc:mysql://172.31.0.35:3306/canal_manager?useUnicode=true&characterEncoding=UTF-8&useSSL=false
canal.instance.tsdb.dbUsername = xxx
canal.instance.tsdb.dbPassword = zzzz
# dump snapshot interval, default 24 hour
canal.instance.tsdb.snapshot.interval = 24
# purge snapshot expire , default 360 hour(15 days)
canal.instance.tsdb.snapshot.expire = 360

#################################################
#########         destinations        #############
#################################################
canal.destinations =
# conf root dir
canal.conf.dir = ../conf
# auto scan instance dir add/remove and start/stop instance
canal.auto.scan = true
canal.auto.scan.interval = 5
# set this value to 'true' means that when binlog pos not found, skip to latest.
# WARN: pls keep 'false' in production env, or if you know what you want.
canal.auto.reset.latest.pos.mode = false

#canal.instance.tsdb.spring.xml = classpath:spring/tsdb/h2-tsdb.xml
canal.instance.tsdb.spring.xml = classpath:spring/tsdb/mysql-tsdb.xml

canal.instance.global.mode = manager
canal.instance.global.lazy = false
canal.instance.global.manager.address = ${canal.admin.manager}
#canal.instance.global.spring.xml = classpath:spring/memory-instance.xml
#canal.instance.global.spring.xml = classpath:spring/file-instance.xml
canal.instance.global.spring.xml = classpath:spring/default-instance.xml

##################################################
#########           MQ Properties      #############
##################################################
# aliyun ak/sk , support rds/mq
canal.aliyun.accessKey =
canal.aliyun.secretKey =
canal.aliyun.uid=

canal.mq.flatMessage = true
canal.mq.canalBatchSize = 50
canal.mq.canalGetTimeout = 100
# Set this value to "cloud", if you want open message trace feature in aliyun.
canal.mq.accessChannel = local

canal.mq.database.hash = true
canal.mq.send.thread.size = 30
canal.mq.build.thread.size = 8

##################################################
#########              Kafka              #############
##################################################
kafka.bootstrap.servers = 172.31.0.35:9092
kafka.acks = all
kafka.compression.type = none
kafka.batch.size = 16384
kafka.linger.ms = 1
kafka.max.request.size = 1048576
kafka.buffer.memory = 33554432
kafka.max.in.flight.requests.per.connection = 1
kafka.retries = 0

kafka.kerberos.enable = false
kafka.kerberos.krb5.file = ../conf/kerberos/krb5.conf
kafka.kerberos.jaas.file = ../conf/kerberos/jaas.conf

# sasl demo
# kafka.sasl.jaas.config = org.apache.kafka.common.security.scram.ScramLoginModule required \\n username=\"alice\" \\npassword="alice-secret\";
# kafka.sasl.mechanism = SCRAM-SHA-512
# kafka.security.protocol = SASL_PLAINTEXT

##################################################
#########             RocketMQ         #############
##################################################
rocketmq.producer.group = test
rocketmq.enable.message.trace = false
rocketmq.customized.trace.topic =
rocketmq.namespace =
rocketmq.namesrv.addr = 127.0.0.1:9876
rocketmq.retry.times.when.send.failed = 0
rocketmq.vip.channel.enabled = false
rocketmq.tag =

##################################################
#########             RabbitMQ         #############
##################################################
rabbitmq.host =
rabbitmq.virtual.host =
rabbitmq.exchange =
rabbitmq.username =
rabbitmq.password =
rabbitmq.deliveryMode =


##################################################
#########               Pulsar         #############
##################################################
pulsarmq.serverUrl =
pulsarmq.roleToken =
pulsarmq.topicTenantPrefix =

# canal-server 配置
# cat canal.properties
# register ip
canal.register.ip = 172.31.0.38 「修改这个配置，多台机器本机IP」
# canal admin config
canal.admin.manager = 172.31.0.37:8089
canal.port = 11111
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd = 4ACFE3202A5FF5CF467898FC58AAB1D615029441
# admin auto register
canal.admin.register.auto = true
canal.admin.register.cluster = zzz-local
canal.admin.register.name = canal_server_01 「多台机器名字」

启动 Canal-server 服务，发现服务自动注册到集群中

Canal集群的部署

添加instance实例，配置参考上述单节点配置

Canal集群的部署

Canal集群的部署
2024年 11月 12 日

安装Java环境

下载Canal安装包

部署

配置文件

打开网页配置

创建instance

日志查询

集群部署

新建集群名字和ZK地址

添加集群主配置

启动 Canal-server 服务，发现服务自动注册到集群中

添加instance实例，配置参考上述单节点配置

安装Java环境

下载Canal安装包

部署

配置文件

打开网页配置

创建instance

日志查询

集群部署

新建集群名字和ZK地址

添加集群主配置

启动 Canal-server 服务，发现服务自动注册到集群中

添加instance实例，配置参考上述单节点配置

评论区

评论一下~

暂无评论，要不来一发？

Canal集群的部署 2024年 11月 12 日

安装Java环境

下载Canal安装包

部署

配置文件

打开网页配置

创建instance

日志查询

集群部署

新建集群名字和ZK地址

添加集群主配置

启动 Canal-server 服务，发现服务自动注册到集群中

添加instance实例，配置参考上述单节点配置

Canal集群的部署

安装Java环境

下载Canal安装包

部署

配置文件

打开网页配置

创建instance

日志查询

集群部署

新建集群名字和ZK地址

添加集群主配置

启动 Canal-server 服务，发现服务自动注册到集群中

添加instance实例，配置参考上述单节点配置

评论区

评论一下~

暂无评论，要不来一发？

Canal集群的部署
2024年 11月 12 日
